High Performance Network InfrastructureSignal thatdoesn’t negotiate.
Structured cabling, fiber backbone, connectors, managed switching, surveillance and access control — engineered to spec and tested end to end. Certified, not claimed.
Straight from the index.
A slice of the catalog. Every line is specified to a standard and ships with a test report.
CablingCat 6A U/FTP, 23 AWG OFC
CBL-6A-305
Solid 99.99% OFC, foil-shielded pairs, LSZH. 10 Gbps to 100 m.
- Conductor
- 23 AWG solid OFC
- Shield
- U/FTP foil
- Jacket
- LSZH · Ø7.1 mm
- Bandwidth
- 500 MHz
ConnectorsRJ45 Cat 6A Shielded Plug
CON-6A-SH
Field-terminable shielded 8P8C plug with load bar.
- Type
- 8P8C shielded
- Plating
- 50 µin gold
- Wire
- 22–26 AWG
- Cycles
- ≥ 750
FiberOS2 Single-Mode LC Pigtail
FIB-OS2-LC
9/125 µm single-mode pigtail, factory-polished LC/UPC.
- Mode
- OS2 · 9/125 µm
- Connector
- LC/UPC
- IL
- ≤ 0.20 dB
- RL
- ≥ 50 dB

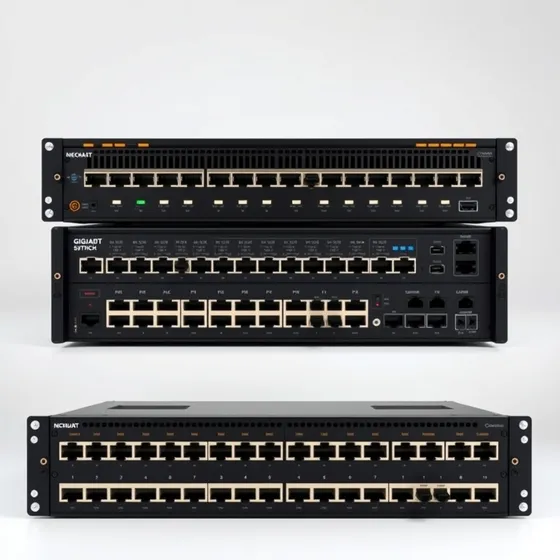

Switching24-Port Managed PoE+ Switch
SW-24-POE
24× Gigabit PoE+ with 4 SFP uplinks, 370 W budget, L2+.
- Ports
- 24× 1G PoE+ · 4 SFP
- PoE
- 370 W
- Switching
- 56 Gbps
- Mgmt
- L2+ · VLAN
Surveillance4 MP IR Dome IP Camera
CAM-DOME-4MP
4 MP dome, 30 m IR, IP67, PoE. Clean low-light.
- Sensor
- 1/2.7-in 4 MP
- IR
- 30 m
- Ingress
- IP67 / IK10
- Codec
- H.265+
Tested to 10 Gbps over 100 m.Certified, not claimed.
Every channel we hand over arrives with a signed test report: insertion loss, NEXT, return loss, headroom. The numbers are the deliverable.
Cobertura de extremo a extremo.
Four systems, one signal path. Designed, supplied, and tested by the same hands that hand you the report.
Structured Cabling
PLATE 01Copper backbone built to a transmission spec, not a price point. Cat 6A and Cat 6 systems certified to 10 Gbps over the full 100 m channel.
- + Cat 6A / Cat 6 channel certification
- + LSZH & plenum jacket options
- + Patch panels, keystones, faceplates
- + As-built channel test reports
Fiber & Backbone
PLATE 02Single-mode and OM4 backbone, fusion-spliced and OTDR-traced. Loss budgets you can hand to procurement.
- + OS2 single-mode & OM4 multimode
- + Fusion splicing, LC/SC termination
- + OTDR bidirectional trace reports
- + Splice trays, enclosures, cassettes
Surveillance / CCTV
PLATE 03IP video that records when it matters. NVRs, PoE cameras and storage sized to retention, not guesswork.
- + IP cameras, PoE+ budgets
- + NVR storage sized to retention
- + LPR & analytics-ready nodes
- + Remote monitoring, mobile access
Access Control
PLATE 04Who enters, when, and where, under control. Biometric terminals and IP door panels with audit-grade logs.
- + Biometric & card terminals
- + IP door controllers, 2 & 4 door
- + Anti-passback, audit logging
- + Integration with video nodes
Disassembled, to the conductor.
Scroll to take the cable apart. Every layer is dimensioned and specified, because the jacket is not what carries 10 gigabit. The copper is.
- 01
- LSZH jacket
- Ø 7.1 mm · low-smoke zero-halogen
- 02
- Aluminium-mylar foil
- U/FTP overall + per-pair screen
- 03
- 23 AWG solid copper
- 99.99% OFC · 4 twisted pairs
- 04
- Conductor core
- DC resistance 8.6 Ω / 100 m

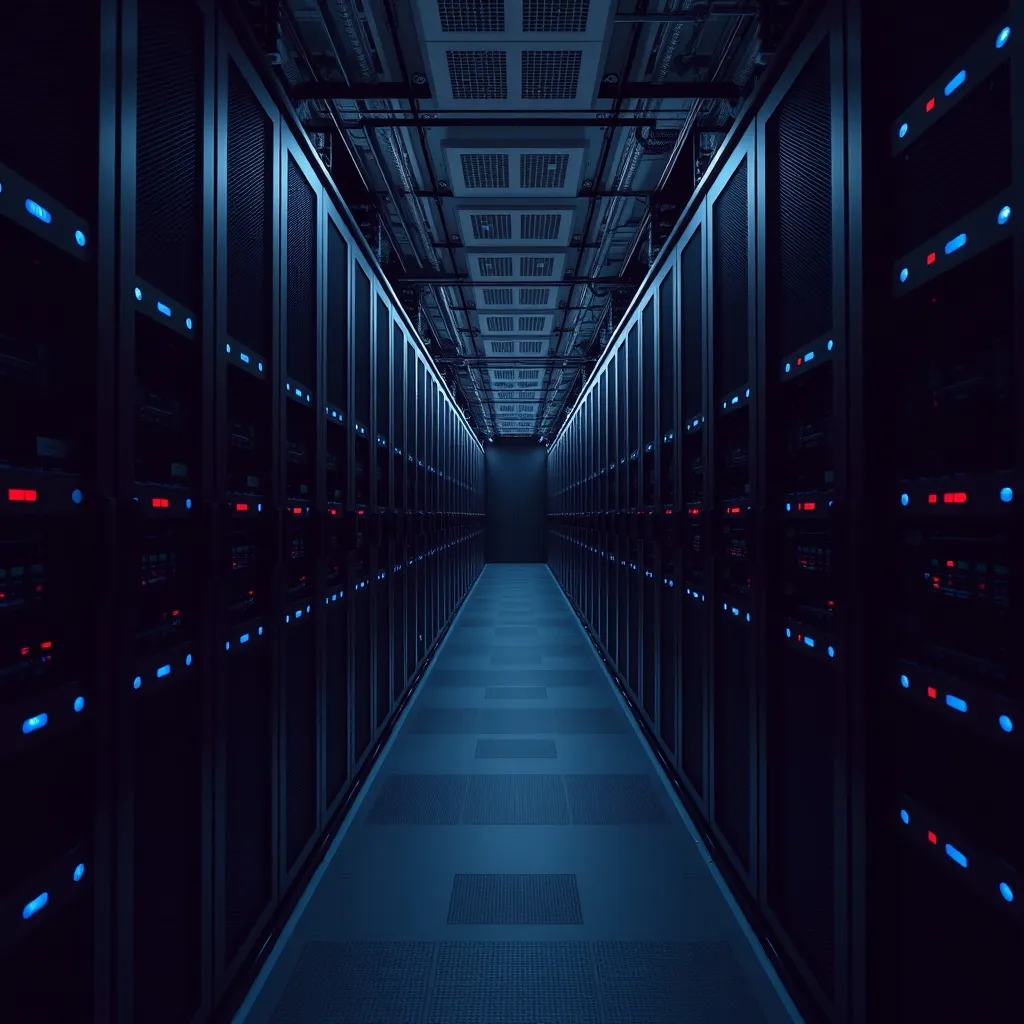

DATA CENTER · MERIDIAN DATA CAMPUS
A 14-rack expansion needed a backbone certified for 25G-ready uplinks with documented loss budgets before tenant move-in.
OS2 backbone fusion-spliced and OTDR-traced bidirectionally; every channel handed over with a signed test report two days ahead of schedule.
Where the signal runs.
- 01Data CentersBackbone, OTDR-traced fiber, 25G-ready uplinks→
- 02Enterprise & CampusHorizontal cabling, PoE switching, IDF/MDF→
- 03Retail & Multi-siteRepeatable per-store kits, rolling cutover→
- 04Government & CriticalAudit-grade access control and logging→
- 05Telecom & ISPSplice trays, OSP, last-mile termination→
